SCHILLING - Aluminum gantry crane

The aluminium gantry crane. Heavy loads, easily moved.

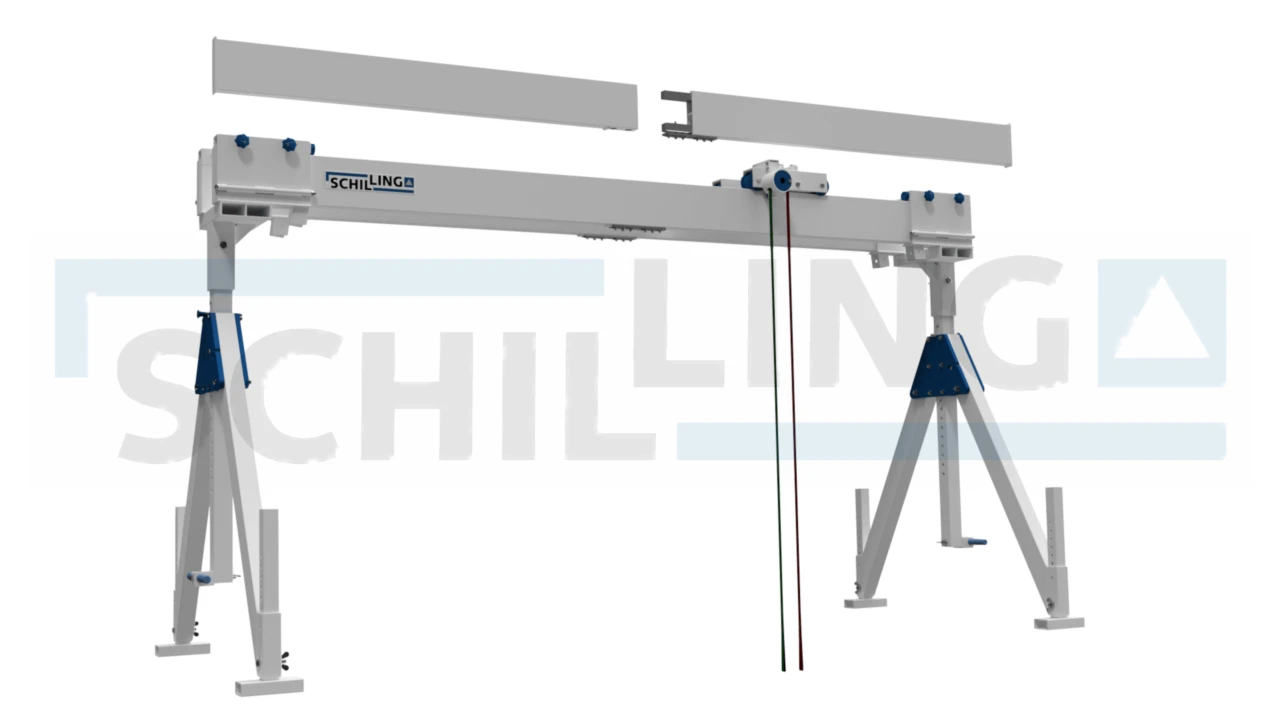

A height- and length-adjustable crane system that offers maximum fl exibility thanks to its variable adjustment options.

The SCHILLING aluminium gantry crane can be erected and dismantled in a very short time and with relatively little effort.
No structural modifi cations (e.g. dowel fastenings or similar) are necessary. Lightweight construction, with extremely high stability.

In the stationary version, the height of the four adjustable feet can be set individually and independently of each other and thus
optimally adapted to the local conditions. Absolute stability for all load applications.

suspension point at the bolt of the trolley min. - max. in mm: 1834 - 2884
total height min.- max. in mm: 1934 - 2984
adjustment range of the beam support in mm : 650
adjustment range of the adjustment foot in mm : 400
total adjustment range in mm : 1050
total width of the crane max. in mm: 4244
distance between the lateral stands on the floor max. in mm: 3753

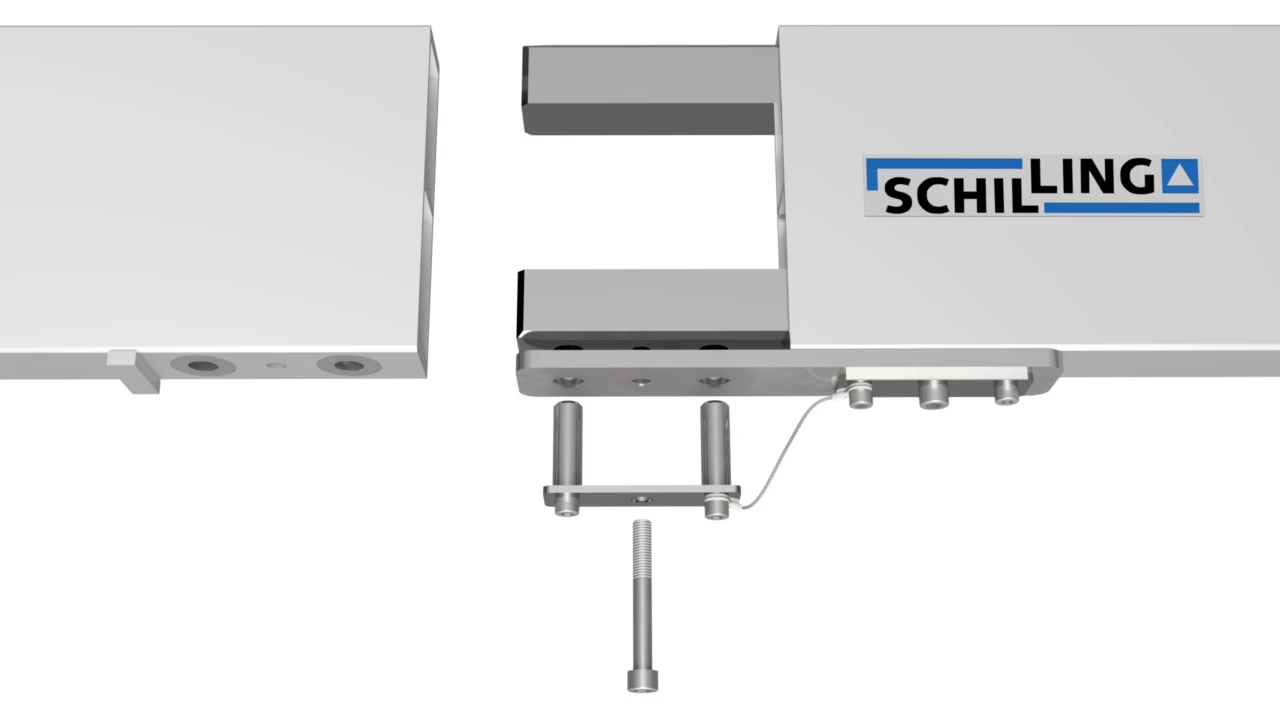

aluminium beam: separable alu double beam
Beam profile in mm: 220x60
total beam length in mm: 4100
usable beam length in mm: 3479
length of the split beam parts in mm : 2000 / 2000
One of the two pieces (with sleeve) can be used as a single double beam.
The following combinations are possible:
1. beam length in mm : 4000
2. beam length in mm : 2000
beam housing 1: sleeve 92x92 with bump stop
beam housing 2: end piece
stand brace profile in mm: 120x80
beam support profile in mm : 81x81
length of the beam support 1 / 2 in mm: 1390 / 1390


Varianten

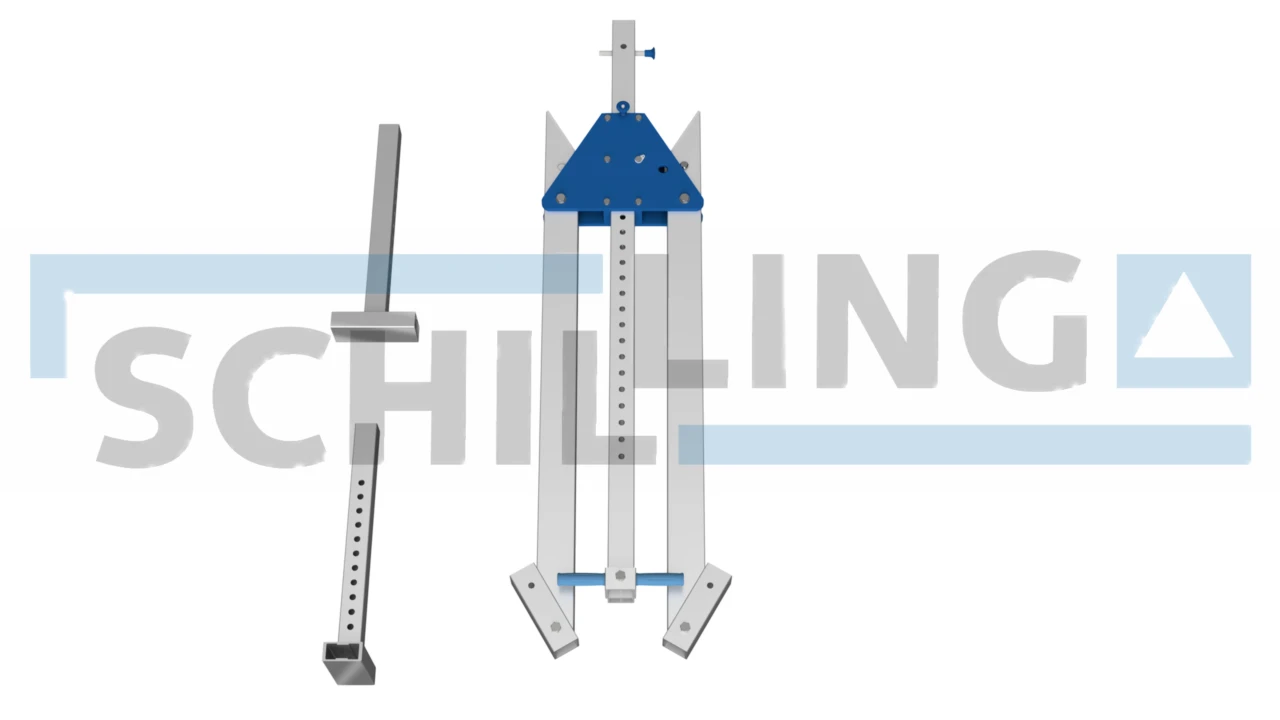

• Two lateral stands, foldable
  with height-adjustable beam support

  grid dimension: 50 mm

• with two height adjustable adjustment feet

  grid dimension: 40 mm

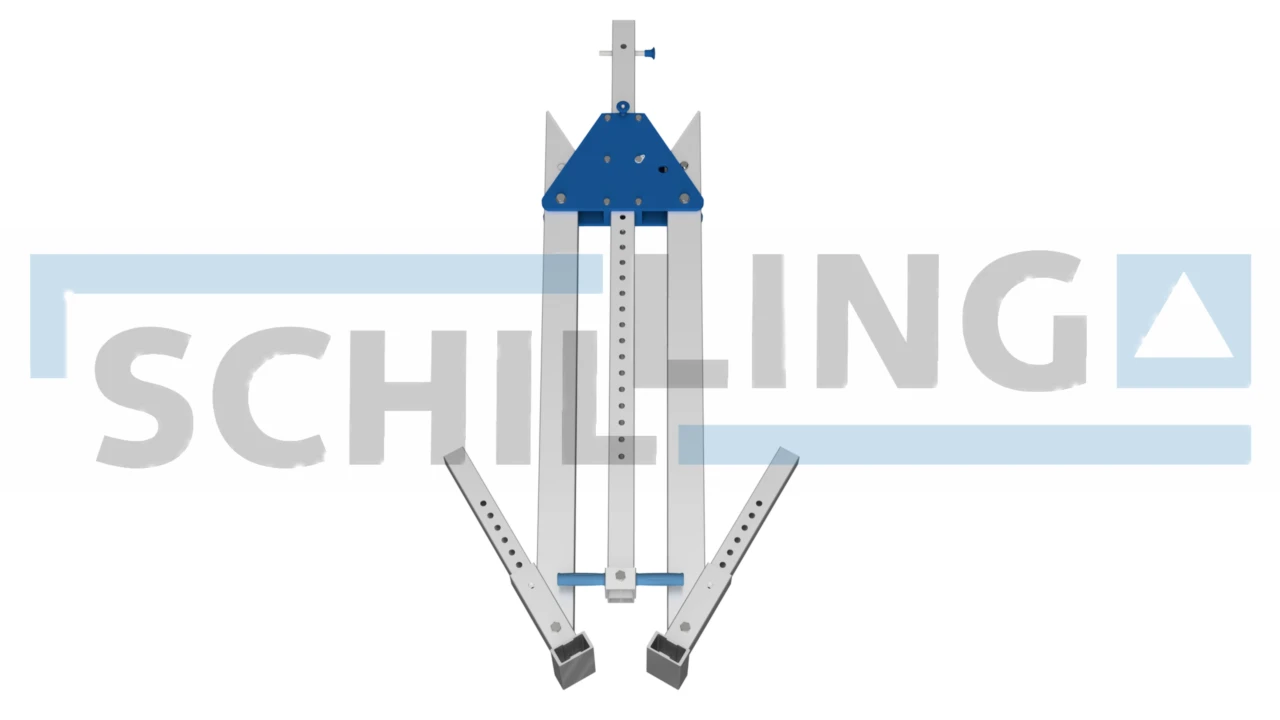

  The lateral stands can be folded up effortlessly and can therefore be stowed, stored, and transported in a space saving manner.

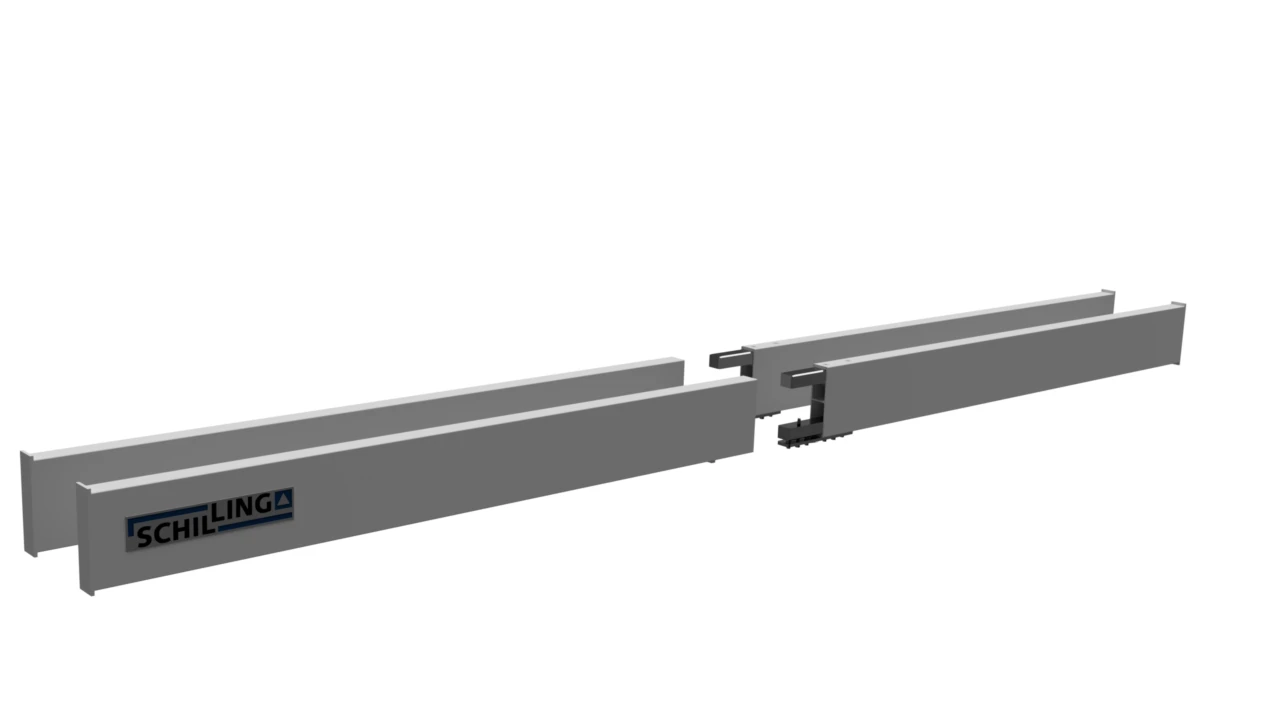

• One aluminium beam
  Separable resp. pluggable aluminium beam.

• One fixable park brake trolley
  The trolley is used to hold the chain hoist or alternatively the lifting straps.
  Even under full load, the trolley is infinitely adjustable and can be locked in any position.

• Two bump stops
  As collision protection for the trolley

• One integrated horizontal adjuster
  Through the use of the horizontal adjuster the usable length of the aluminium Gantry Crane can be adjusted smoothly between the two lateral stands.



• electric trolley - radio control
• electric trolley - direct
• Electric chain hoist - radio
• Pulley block made of aluminum
• Electric chain hoist
• Cabling, power supply
• circulating belt / rope
• Manual winch for SCHILLING aluminum gantry crane
• Chassis for aluminum gantry crane
• Wall bracket for aluminum gantry crane
