Aluminum cross beams from SCHILLING
Cross beams are used to lift heavy loads using cranes, forklifts, or other lifting equipment. Thanks to the various designs for crane or forklift operation, cross beams allow loads to be transported ideally with even weight distribution.
For better weight distribution and to reduce deflection of the load-bearing equipment, the load is suspended from the cross beam at several points. Bulky, large loads often require special load lifting beams.
SCHILLING Lifting and Crane Technology designs and manufactures customized cross beams tailored to your requirements. We also supply a wide range of accessories for our various cross beams, such as sling chains, various hooks, and components for big bags. Your challenge is our motivation – we are sure to find the right solution for you in a personal consultation.
Aluminum cross beam
The SCHILLING aluminum cross beam is equipped with two adjustable safety load hooks that can be rotated 360° under load: It can be easily attached to the crane hook using the integrated crossbeam suspension. The practical quick-release system allows the load hooks to be quickly adjusted and repositioned for maximum flexibility with changing load widths. All components are made of robust aluminum or high-quality plastic – except for bolts and suspension hooks – ensuring low weight and high stability.
Aluminum cross beam
Four adjustable safety load hooks – each rotatable through 360° under load – make the SCHILLING aluminum cross beam a versatile solution for demanding tasks. Both crossbeams can be removed from the main beam if necessary, allowing flexible adaptation to different load geometries. The crossbeam suspension ensures a secure connection to the crane hook, while the quick-release system makes it particularly easy to attach and reposition the load hooks on the main and cross beams. All components are made of aluminum or robust plastic – except for bolts and suspension hooks.
Cross beam for big bags
When big bags need to be moved safely and in a controlled manner, the SCHILLING aluminum cross beam for big bags is the ideal choice. It combines a crossbeam suspension for crane hooks with two holders for forklift tins, which can be moved continuously and adjusted to a maximum fork profile of 240 x 115 mm. At the front, a 4-point suspension allows easy attachment of the big bag loops and even load distribution – for clean, stable, and safe working.

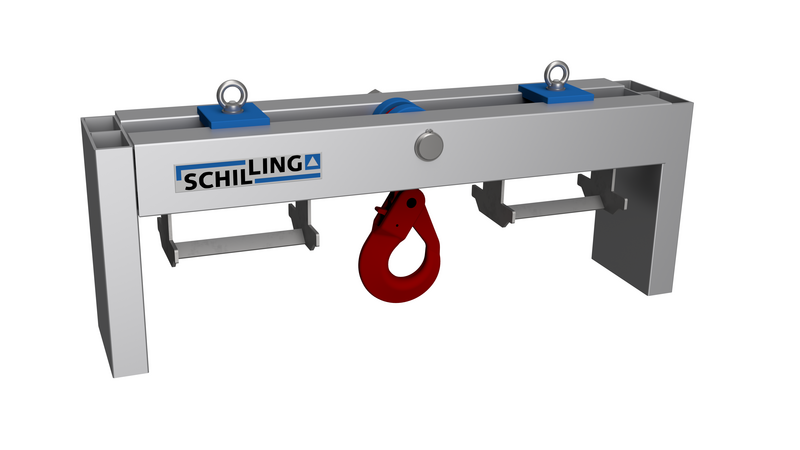

Aluminium Fork Mounted Hook
Simply hook it onto the forks and move heavy loads with ease: the SCHILLING aluminum fork mounted hook with hooks transforms any forklift into a practical lifting and loading device. The safety load hook with axial bearing can be rotated 360° under load – for maximum mobility when working. Thanks to its stepless adjustment, the lifting beam fits almost all fork arms up to a profile of 240 x 115 mm.
Manufacturer of Gantry Cranes
High flexibility and easy handling
Our lifting technology products are adjustable in height and length, freestanding and can be assembled or disassembled in just a few steps – with no structural modifications required.
Certified safety (CE)
All products comply with relevant EU regulations and of course they do have the CE mark.
Tested for the UK (UKCA)
Reliable and compliant – the UKCA certification confirms conformity with British standards.
Personal Safety
All standard SCHILLING aluminum gantry cranes are tested and approved not only for material handling but also for personal fall protection.
Certified according to DIN EN 795
When used with the trolley SCHILLING aluminum gantry cranes meet the DIN EN 795 requirements as certified anchor devices.
Explosion protection according to ATEX Zone 1
For use even in explosive environments – SCHILLING gantry cranes and lifting products are certified for ATEX Zone 1 and approved for maximum safety.
