Aluminum slewing crane – made by SCHILLING
A slewing crane, often also referred to as a column-mounted slewing crane, is used in industry and trade where, for example, free-standing floor mounting is necessary. The 360° slewing range and the 2-meter-long slewing arm of the crane ensures a large working area.
The lightweight SCHILLING aluminum slewing crane can lift loads with a weight of up to 500 kg and is easy to dismantle due to its design. It is particularly suitable for quickly lifting and moving workpieces or packaging units and is easy to handle due to the hoist.
The robust and durable aluminum construction guarantees that our column-mounted slewing crane can be used both indoors and outdoors. The slewing crane is mounted directly on the floor using a round dowel plate with floor anchors. Additionally it is also possible to mount the crane directly on the wall of the workshop via a wall bracket. With a height of less than 3.50 m, the SCHILLING column-mounted slewing crane fits under almost any hall ceiling. The diagonal strut on the slewing crane provides additional stability. Of course, we also do develop customized aluminum slewing cranes according to your special requirements.

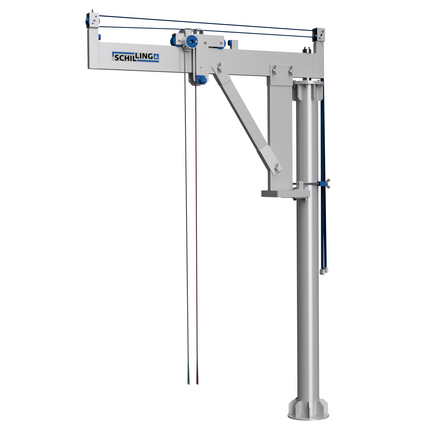

Aluminium slewing crane
The SCHILLING aluminum slewing crane is firmly anchored on the floor. This offers maximum stability with minimum weight. The integrated locking device with brake unit ensures safe working space and precise positioning of heavy loads. Despite its robust construction, the crane can be easily installed by two people.
- Suspension point at the trolley 3,000 mm
- Height of the slewing crane:
- Total height: 3,380 mm
- Column length: 3,000 mm
- Total length of boom arm: 2,000 mm
- The aluminum slewing crane can be dismantled into 5 parts:
- Column
- Boom arm
- Support profile with brake unit
- Brace
- Trolley with manual trolley direction band

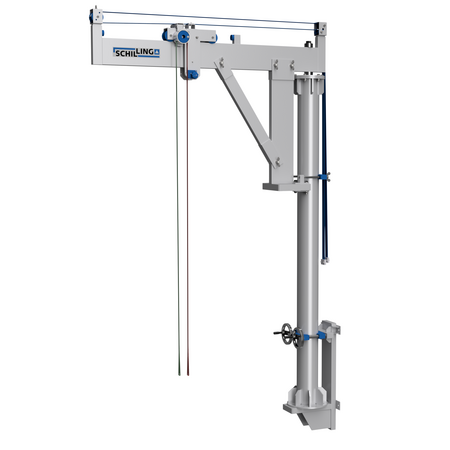

Wall-mounted slewing crane made of aluminum
The SCHILLING aluminum wall-mounted slewing crane is the space-saving solution for lifting and positioning loads on fixed structures. It is suitable for aluminum slewing cranes with a load capacity of 250 kg and 500 kg and can be used both indoors and outdoors.
Schwenkkran für Pharmaindustrie, Maschinenbau und Elektrotechnik
SCHILLING aluminum slewing cranes are used everywhere where clean and efficient lifting is required. Whether in the pharmaceutical industry, mechanical engineering, or electrical engineering their lightweight, corrosion-resistant design and simple construction make them the ideal solution for demanding work areas.
- Pharmaceutical industry
- Electrical engineering
- Mechanical engineering
Manufacturer of Gantry Cranes
High flexibility and easy handling
Our lifting technology products are adjustable in height and length, freestanding and can be assembled or disassembled in just a few steps – with no structural modifications required.
Certified safety (CE)
All products comply with relevant EU regulations and of course they do have the CE mark.
Tested for the UK (UKCA)
Reliable and compliant – the UKCA certification confirms conformity with British standards.
Personal Safety
All standard SCHILLING aluminum gantry cranes are tested and approved not only for material handling but also for personal fall protection.
Certified according to DIN EN 795
When used with the trolley SCHILLING aluminum gantry cranes meet the DIN EN 795 requirements as certified anchor devices.
Explosion protection according to ATEX Zone 1
For use even in explosive environments – SCHILLING gantry cranes and lifting products are certified for ATEX Zone 1 and approved for maximum safety.
