New in assortment - ALU load beam H-design 2 to / 3 to with 3 m cross beam

We have further improved our ALU load cross beam. Due to the new horizontal bracing of the cross beams, we can now offer our aluminium load cross beams in H-design with 2,000 kg and 3,000 kg load capacity in the "working width cross beam 3,000 mm".

Load cross beams are load carrying devices for heavy or bulky loads, which are carried at several points for reasons of better weight distribution or less deflection. One advantage of SCHILLING load cross beams is their lightweight aluminium construction and high load capacity. High-quality aluminium profiles are used here in our production.

SCHILLING aluminium load beams are used in a wide variety of trades and industries. The diverse combinations of load capacity, working widths and the adjustable range take into account the most common applications. This is particularly evident with our new aluminium load cross beams in H-construction.

Further advantages are:

• Load capacity 2,000 kg and 3,000 kg
• Working width cross beams up to 3,000 mm
• With cross beam suspension for crane hooks
• Stepless centre of gravity adjustment
• With four adjustable safety load hooks, which can be rotated through 360° under load.
• Quick-locking system to quickly adjust the load hooks on the main and cross beams in 50 mm increments.

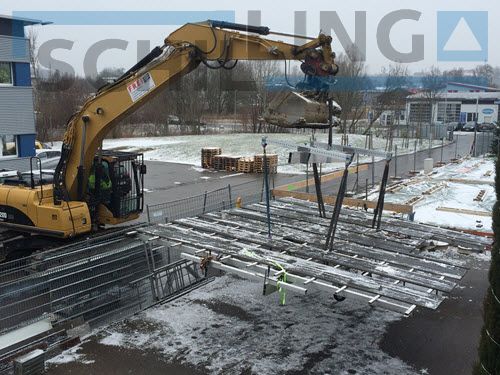

Here are two application examples of our aluminium load beam in H-design:

You can also find more information about our traverses here. If you have any questions, please do not hesitate to contact us directly. Competent advice, know-how, product quality, product safety, individual production and fair prices are our strengths.
