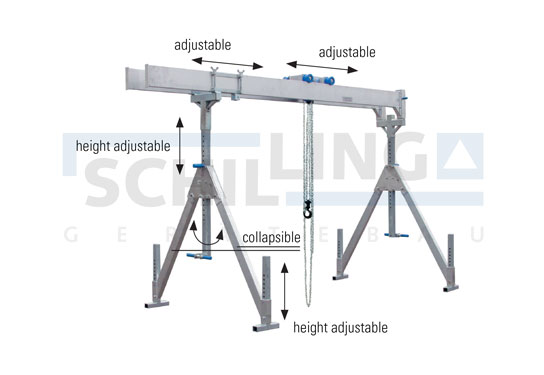

Stationary model with double beam - load capacity 2,000 kg and 3,000 kg

For exact data and variants, please refer to our detailed data sheet for the aluminium gantry crane:

• Datasheet Aluminium gantry crane

2 pieces lateral stand, collapsible
with 2 height adjustable beam supports made of aluminium special profiles

• distance between holes: 50 mm with 4 adjustment feet made of aluminium special profiles
• distance between holes 40 mm

The lateral stands can be easily folded and can therefore space saving stored and transported.

1 set aluminium special profile beams
(1 set = 2 single beams)

1 piece top-mounted park-break trolley
Into the trolley e.g. the hoist (chain hoist) or appropriate lifting bands will be hocked.
The trolley can be moved smoothly on the aluminium beam and can be fixed in any position.
Due to the top-mounted trolley the maximum lift in relation to the total height can be used.

4 pieces bump stop
Collision protection for the trolley

1 piece integrated horizontal adjuster
By the use of the horizontal adjuster the usable length of the Aluminium Gantry Crane can be adjusted smoothly between the two lateral stands.
The running track width of the aluminium double beam is variable.
This is a definite added value as well as a higher flexibility for the user.

1 piece beam mountings
Both aluminium beams will be insert and fixed here.
Furthermore this component guarantee for the parallelism of the aluminium double beam.

The following accessories are available for the push-fit aluminium gantry crane with double girder:

• Wall Bracket
• Wheel Kit
• Chain Hoist
• Electric Chain Hoist
• Cable System / Power Supply
• Manual Trolley Direction Band
• Hand Winch for Aluminium Gantry Cranes
• Lateral Extension Beam
• Packing and Transportation Box
